Air Filter

  • Consumables Primary Filter Element for Vacuum Slot Extraction
Consumables Primary Filter Element for Vacuum Slot Extraction

Consumables Primary Filter Element for Vacuum Slot Extraction

  • Product description: Consumables Primary Filter Element for Vacuum Slot Extraction
  • INQUIRY   EMAIL

Whatsapp Me

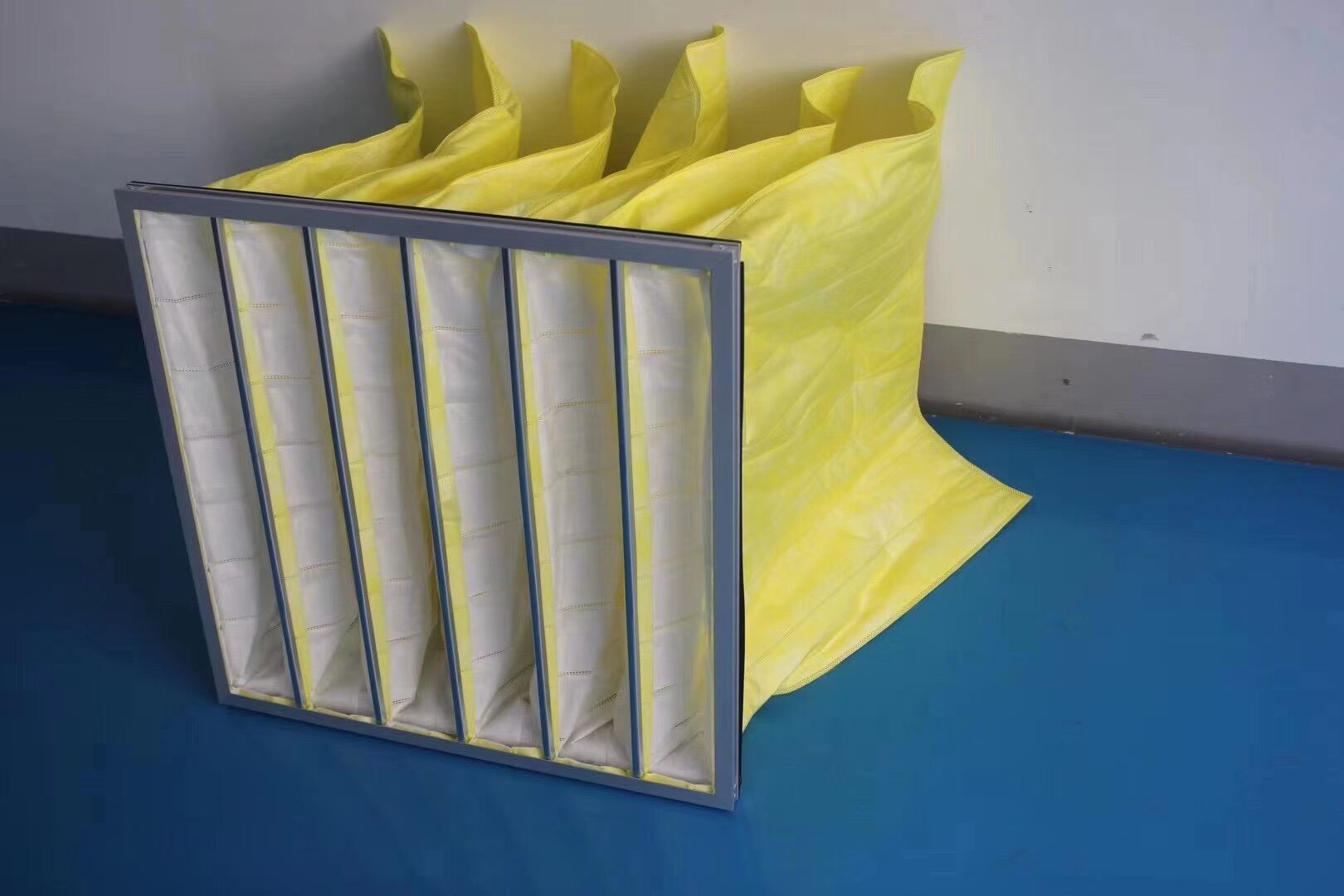

F5 F6 F7 F8 Pocket Bag Filter for HVAC Medium Efficiency Filter Primary Bag Filter

Filter media: Synthetic fiber
Frame material: Galvanized sheet
Header:20-25mm
Grade: G3 G4 F5-F9
Gasket: Foamed sealant stripe(optional)
Testing standard: EN799 ANSI/ASHRAE 52.1-1992
Working temperature: up to 80°C



Advantage:
1.Welded edge to avoid leakage
2.Self-supported
3.Fire retardant
4.Fixed airflow tunnle insdie each pocket.
5.High volume and capapcity



Application:
1.heavy and metal industry
2.Chemical plants
3.Pharmaceutical and food industry
4.Gas trubo and Co-generation utility plants
5.Paint spray plants
6.Pre-filtration and recycling or exhaust air

 Sample data:

W*H*D(mm) Pocket Number(pcs) Filter Class Filter Area(m2) Airflow(CMH) Intial Pressure Drop(Pa)
592*592*600 8 F5 5.6 3400/4250 35/53
F6 3400/4250 47/72
F7 3400/4250 116/150
F8 3400/4250 126/160
592*287*600 4 F5 2.8 1700 35
F6 1700 47
F7 1700 116
F8 1700 126
592*592*530 6 F5 3.6 3400 48
F6 3400 65
F7 3400 140
F8 3400 160

We can provide you kinds of filter element for hydraulic filter ,oil filter, vacuum pump filter ,air filter, bag filter, hepa filter, carbon filter etc for one stop service.


If you are not found your need filters on our website,please contact us. Email:info@filterreplace.com
