 Coalescer & Separator Filter Cartridge for Gas Turbine CAA43-5SB

Coalescer & Separator Filter Cartridge for Gas Turbine CAA43-5SB

CAA43-5SB replacement  Natural Gas Coalescer Filter Element
Facet CAA Series 5 coalescer cartridges offer the finest performance available. This standard line of high flow coalescer cartridges removes ultra-fine solids and enhances separation of water from jet fuel.

The Facet coalescer separator housings equipped with CAA Series 5 coalescer and companion separator cartridges have been tested and fully qualified to meet the performance requirements of API Bulletin 1581, Fifth Edition, Category C, Type S. (Category C replaces the previous class A, B, and C of API-1581 3rd Edition.)

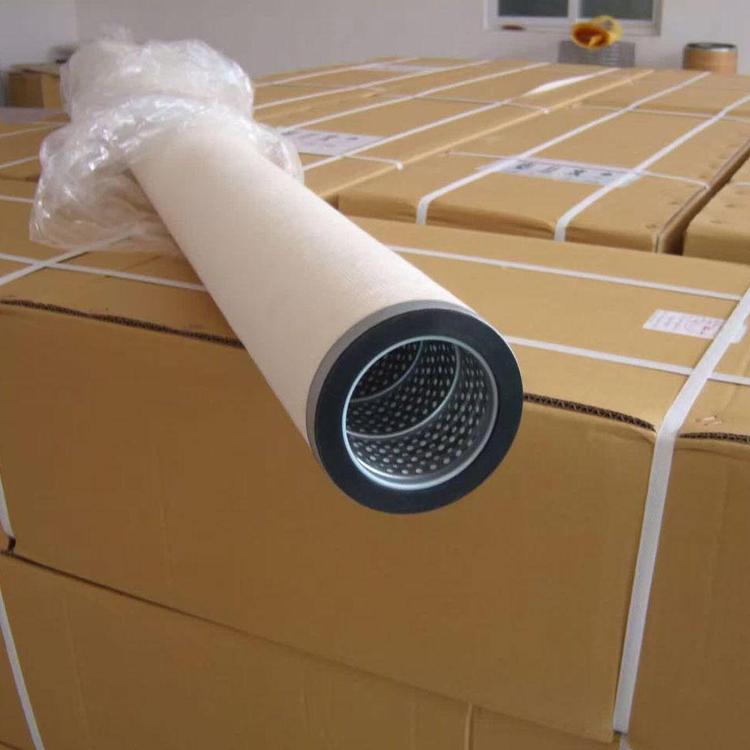

Built for balanced fluid flow-thru and structural strength, each CAA Series 5 coalescer cartridge is a single-piece construction of various combined media, precisely arranged in many layers and pleats, wrapped around a treated, perforated metal center tube - all encased in an outer sock material. All are 6" OD (152 mm) by 3 1/2" ID (89 mm) and available in standard interchangeable nominal lengths in increments from 11 1/4" (290 mm) to 57 1/4" (1450 mm).

The CAA Series 5 coalescer cartridges are available in two cartridge mounting styles: self-centering rod mount and screw base. The rod mount style has treated metal end caps, while the screw base ends are injection molded, glass-filled nylon. This screw base material offers superior strength and ease of maintenance - uniform threads, no shrinkage, no galling and no gasket to recover.

Standard Design Features

• Multi-layered media for increased solids holding capacity
• Ultra-fine solids removal
• Maximum water coalescence
• Balanced cartridge flow characteristics
• Recommended maximum operating temperature: 240°F (115oC)
• Withstands in excess of 75 psi differential pressure
• PH range from 5 to 9
• Screw base or open-end configuration


• All metal components are treated against corrosion
• Screw base ends are injection molded, glass-filled nylon with locked-in gaskets
• Buna-N gaskets-other materials are available on request

Relative part number



89 290 Rod
CAA14-5 152 89 370 Rod
CAA14-5SB 152 89 380 Screw Base
CAA22-5 152 89 560 Rod
CAA22-5SB 152 89 580 Screw Base
CAA28-5 152 89 730 Rod
CAA28-5SB 152 89 740 Screw Base
CAA33-5 152 89 840 Rod
CAA33-5SB 152 89 860 Screw Base
CAA38-5 152 89 960 Rod
CAA38-5SB 152 89 990 Screw Base
CAA43-5 152 89 1100 Rod
CAA43-5SB 152 89 1140 Screw Base
CAA56-5 152 89 1430 Rod
CAA56-5SB 152 89 1450 Screw Base
