Air Filter

  • Second Stage Medium Efficiency Air Filter Pocket bag filter  for Air conditioning ventilation system
  • Second Stage Medium Efficiency Air Filter Pocket bag filter  for Air conditioning ventilation system
Second Stage Medium Efficiency Air Filter Pocket bag filter  for Air conditioning ventilation systemSecond Stage Medium Efficiency Air Filter Pocket bag filter  for Air conditioning ventilation system

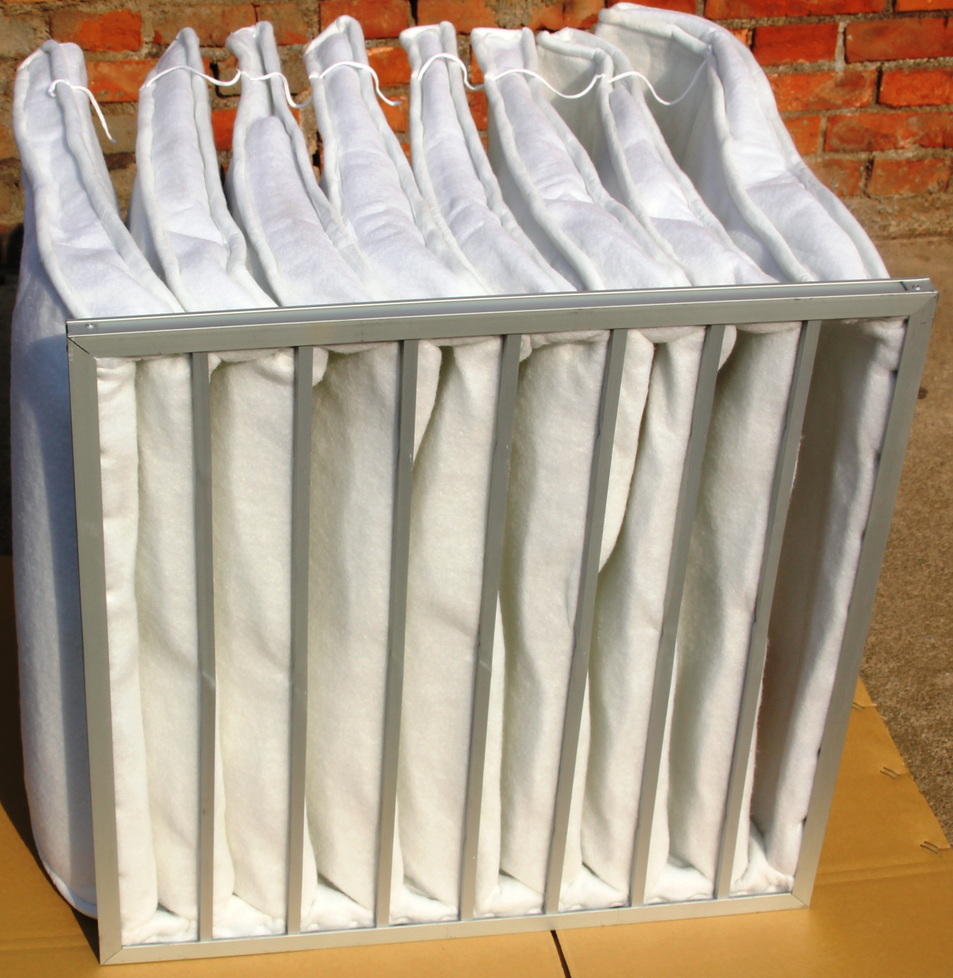

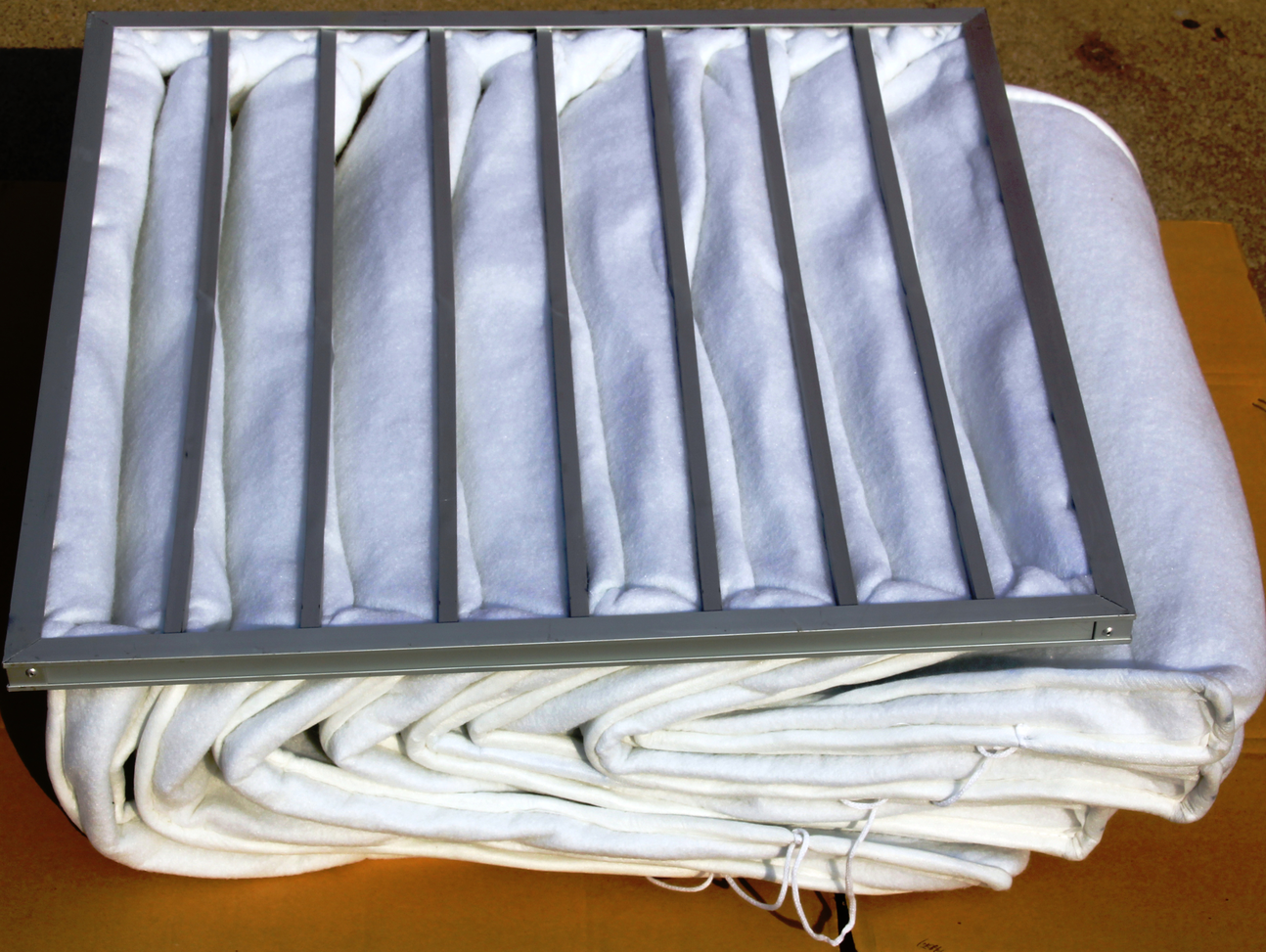

Second Stage Medium Efficiency Air Filter Pocket bag filter for Air conditioning ventilation system

Second Stage Medium Efficiency Air Filter Pocket bag filter

 Filter for Air conditioning ventilation system;

 Thick dust filter(G3, G4), primary filtrate for the filtration system, primary filtrate for the medium filter.

 Thin dust filter(F5,F6), primary filtrate for the HEPA filter.

Performance parameters of pocket bag filter :

Class Size W*H*D(mm) Bags Filtration area(m²) Rated air flow(m3/h) Initial resistance(P) Finalresistance(Pa)
G3 287*592*550 3 1.92 1700 30 200
490*592*550 5 3.28 2600 30 200
592*592*600 6 4.05 3400 30 200
G4 287*592*550 3 1.92 1700 45 250
490*592*550 5 3.28 2600 45 250
592*592*600 6 4.05 3400 45 250
F5 287*592*550 3 1.92 1700 55 300
490*592*550 5 3.28 2600 55 300
592*592*600 6 4.05 3400 55 300
F6 287*592*550 3 1.92 1700 60 320
490*592*550 5 3.28 2600 60 320
592*592*550 6 4.05 3400 60 320
592*592*600 8 5.40 3600 60 320
