Air Filter

  • Powder Coating Pleated Polyester Cartridge Air Filter for Dust Collectors
Powder Coating Pleated Polyester Cartridge Air Filter for Dust Collectors

Powder Coating Pleated Polyester Cartridge Air Filter for Dust Collectors

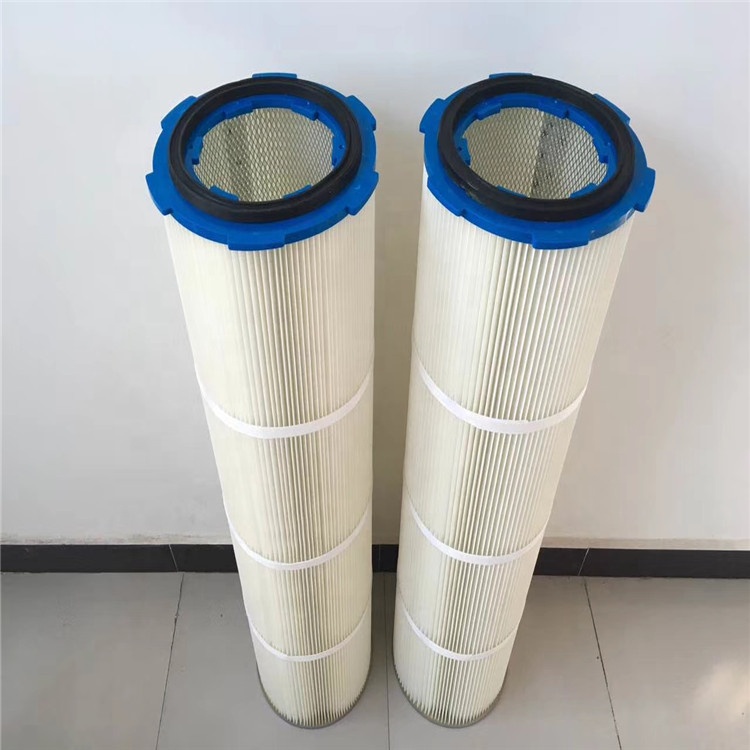

Powder Coating Pleated Polyester  Cartridge Air Filter for dust collectors

Filter Material:
1. Base media: Spunbonded polyester
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
4. Maximum operating temperature: 200oF/93oC
5. Abrasion resistance: Excellent
6. Chemical tolerance: Excellent
7. Optional flame retardant media(FR): To order

Other composition:
1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the durability
and life.
2. Inside cage: Galvanized steel, to prevent corrosion.
3. Molded top: Available in a varitety of styles and sizes to fit a wide range of Tubesheet Holes.
4. Molded bottom: Helps resist abrasive wear at the bottom of the elements.

Applications of Polyester Pleated Cartridge Air Filter:
1. Description: Excellent performance on moist, hygroscopic, or agglomerative dust.
2 Marktets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.

Notes:
1. Optional construction and dimensions are available on all cartridges.
2. Please contact us to make optimal filtration solutions of your applications.

Common Specifications of dust collector filter cartridg
Model Outside diameter of the upper-lid Inside diameter of the upper-lid Outside diameter of the bottom lid Diameter of the installation holes Height
LFK 3266 Φ324 Φ213 Φ324 Φ14 660
LFK 3275 Φ324 Φ213 Φ324 Φ14 750
LFK 32100 Φ324 Φ213 Φ324 Φ14 1000

LFK 3566 Φ352 Φ241 Φ352 Φ16 660
LFK 3575 Φ352 Φ241 Φ352 Φ16 750
LFK 35100 Φ352 Φ241 Φ352 Φ16 1000
