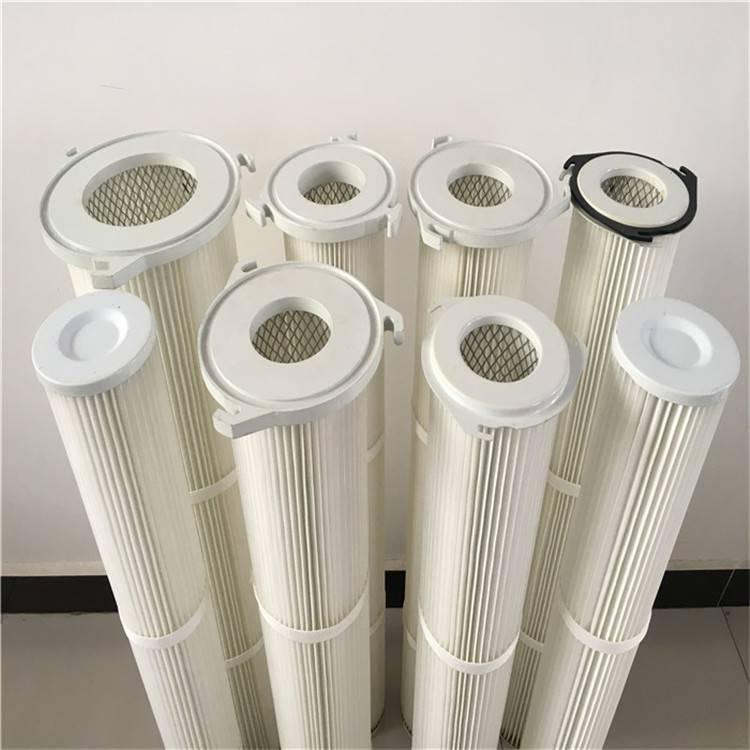

Air Filter Element

  • Stainless Steel Three-lug Loaded Filter Cartridge for welding fumes Mechanical processing
Stainless Steel Three-lug Loaded Filter Cartridge for welding fumes Mechanical processing

Stainless Steel Three-lug Loaded Filter Cartridge for welding fumes Mechanical processing

Features of dust collector air filter cartridges:
(1)   Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.
(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.
(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.
(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.

Specification of Pleated Polyester Air bag Filter Cartridge:

Model O.D I.D Length Filtration surface(m2)
LF/P3266 Φ324mm Φ213mm 660mm 9.4m2
LF/P3566 Φ352mm Φ241mm 660mm 9.4m2
LF/P3275 Φ324mm Φ213mm 750mm 10.7m2
LF/P3288 Φ324mm Φ213mm 880mm 12.5m2
LF/P3290 Φ324mm Φ213mm 915mm 13.0m2
