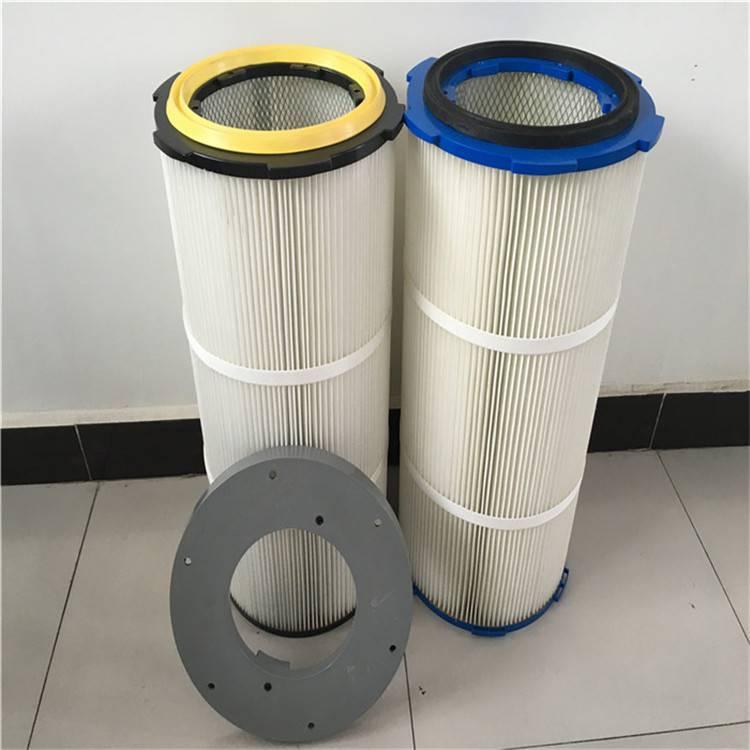

Air Filter Element

  • Cellulose/polyester blend air filter cartridge Suitable for humidity conditions
Cellulose/polyester blend air filter cartridge Suitable for humidity conditions

Cellulose/polyester blend air filter cartridge Suitable for humidity conditions


 Air Filters Cartridge Specifications:

O.D. I.D. Length Filter Area Filter Media
324 mm 213 mm 660 mm 21.00 m2 Cellulose base
352 mm 241 mm 660 mm 23.00 m2 Cellulose base
324 mm 213 mm 750 mm 26.00 m2 Cellulose base
324 mm 213 mm 880 mm 27.00 m2 Cellulose base
324 mm 213 mm 915 mm 28.00 m2 Cellulose base
324 mm 213 mm 660 mm 9.40 m2 Polyester base
352 mm 241 mm 660 mm 9.40 m2 Polyester base
324 mm 213 mm 750 mm 10.70 m2 Polyester base
324 mm 213 mm 880 mm 12.50 m2 Polyester base
324 mm 213 mm 915 mm 13.00 m2 Polyester base

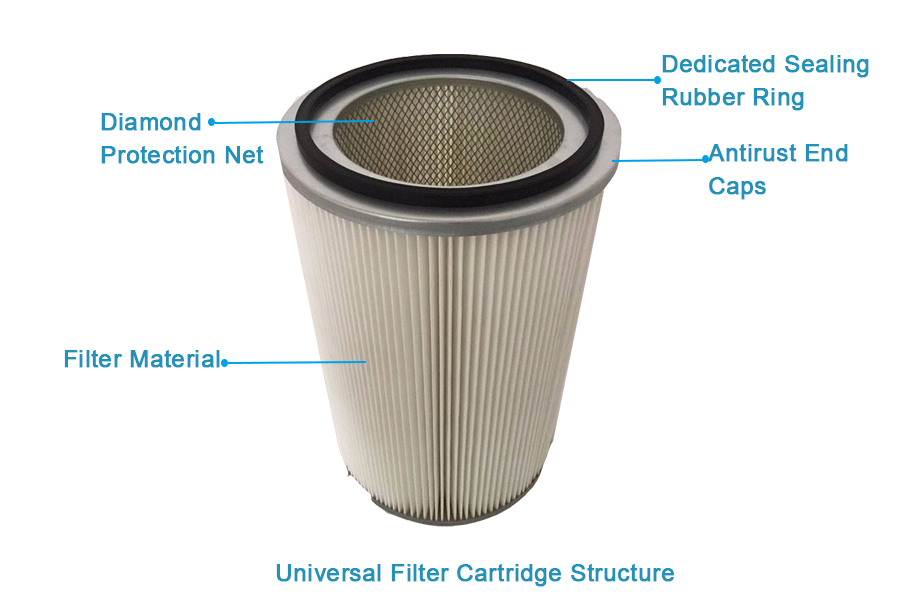

Filter Construction:
1.Caps: Electro galvanized / Stainless steel, no rust
2.Inner core: Galvanized mesh / SS perforated plate
3.Outer: Galvanized mesh / SS mesh / Strip band
4.Gasket: Urethane rubber
5.Straight and uniform pleat spacing
6.Durable structure and excellent workmanship

Filter Media Types:
1.100% cellulose(Suitable for large dusts collections)
2.Cellulose/polyester blend(Suitable for humidity conditions)
3.Flame retardant cellulose(Suitable for flammable dusts)
4.Spun bond polyester(Suitable for abrasive dusts)
5.Antistatic(Suitable for antistatic dusts)
6.PTFE membrane(Suitable for very fine and sticky dusts)

Applications:
Applicable to gas turbines, compressors, sand blasting, tobacco volume wiring, fly ash, filter dust drift.
1. Description: Excellent performance on moist, hygroscopic, or agglomerative dust.
2 Marktets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.

4. Available for collectors: SFF/XLC, SFFK, Torit DFT
