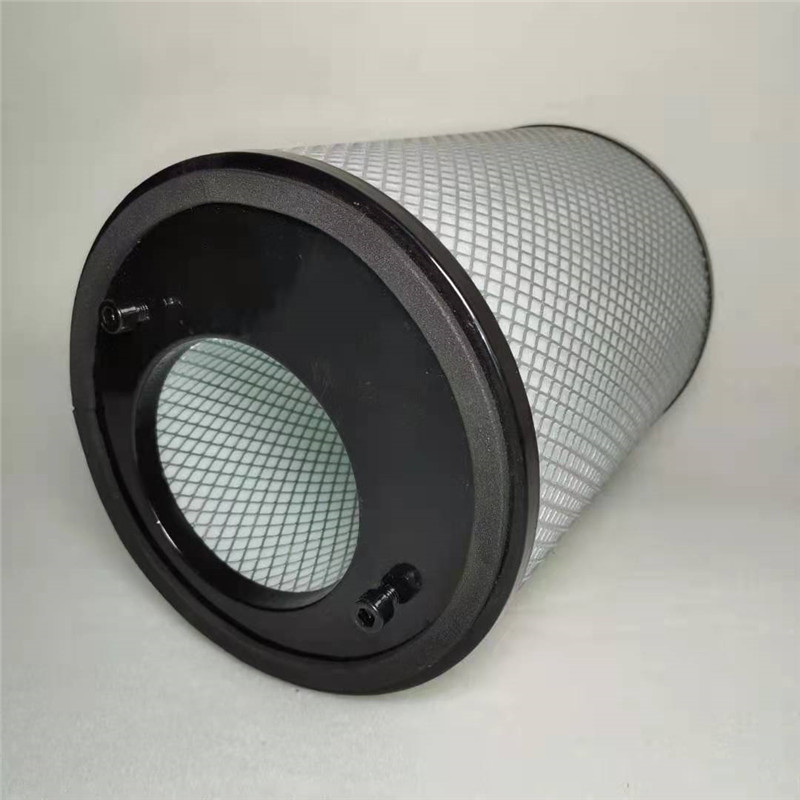

175239000 Air Filter for aerzen blower

Compressor Oil Filters Technical Data:
1. Filtration Accuracy: 10μm-15μm
2. Filtration efficiency: 99.8%
3. Service life is up to 2000h
4. Oil filters are made of imported US HV & Korea Ahlstrom company pure wood pulp paper

Compressor Air Filters Technical Data:
1. Filtration Accuracy: 5μm-10μm
2. Filtration efficiency: 98%
3. Service life is up to 2000h
4. Air filters are made of imported US HV & Korea Ahlstrom company pure wood pulp paper

Compressor Separator Technical Data
1. Filtration Accuracy: 0.1μm
2. Oil contained in compressed is below 3 ppm
3. Filtration efficiency: 99.999%
4. Service life is up to 4000-6000h
5. Initial pressure differential ≤0.02Mpa

6. Filter element of air oil separator is made of imported composite fiber, which imported from HV & Lydall company

Related Filter Element Part Numbers

Filter elements are tested according to the following ISO standards:
ISO 2941 Verification of collapse/burst resistance
ISO 2942 Verification of fabrication integrity
ISO 2943 Verification of material compatibility with fluids
ISO 3723 Method for end load test
ISO 3724 Verification of flow fatigue characteristics
ISO 3968 Evaluation of pressure drop versus flow characteristics
ISO 16889 Multi-pass method for evaluating filtration performance

Packing & Shipping
Plastic bag inside,carton box outside, or according customer special requirement.
Pallet or wooden box or according customer special requirement.
