How Vacuum Pump Filters Protect Your Equipment?

Small but mighty, vacuum pump filters play a crucial role in protecting entire vacuum systems

You've probably seen vacuum pumps humming away in factories, but did you know these critical systems have a silent guardian - the vacuum pump filter? While they don't get the same attention as the pumps themselves, these filters are the unsung heroes ensuring smooth vacuum pump operation.

Three-Layer Protection System

Vacuum pump filters provide three lines of defense:

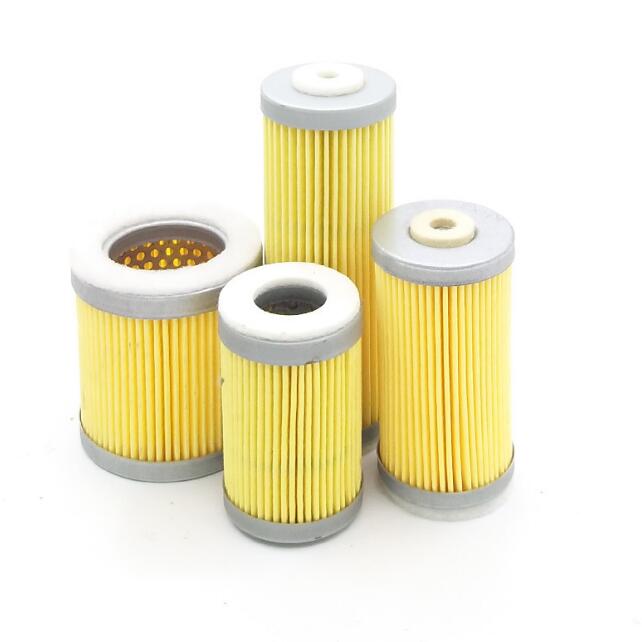

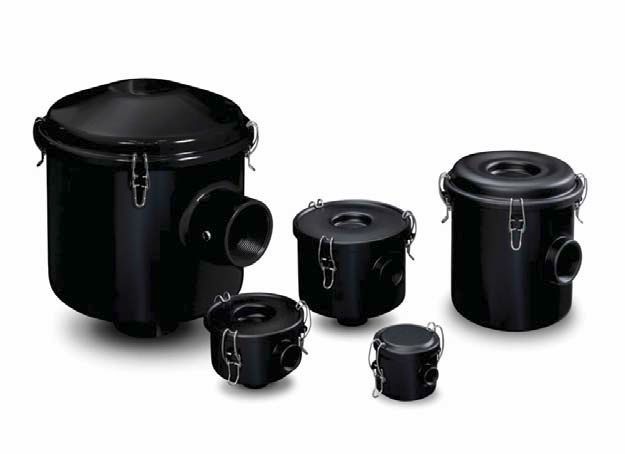

First Layer: Intake Filters
These act as the pump's "face mask," installed at the air intake to capture solid particles, dust, and larger contaminants from incoming air. Without these filters, these particles would enter the vacuum pump directly, causing mechanical wear and significantly shortening the pump's lifespan.

Second Layer: Oil Filters
In oil-sealed vacuum pumps, these are crucial components. During operation, component friction generates microscopic particles while pump oil degrades under high temperatures. Oil filters capture these "internal contaminants," ensuring clean oil and proper lubrication.

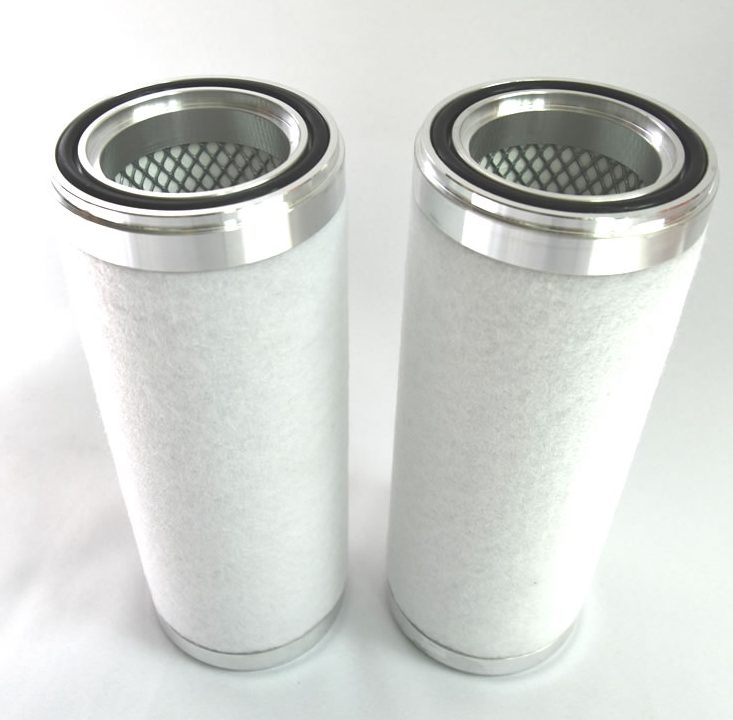

Third Layer: Exhaust Filters (Oil Mist Separators)
Ever notice "white smoke" from vacuum pumps? That's actually oil mist in the exhaust. Exhaust filters, also called oil mist separators, capture these oil mists to prevent environmental pollution while allowing condensed oil droplets to return for reuse, saving pump oil.

How Filters Work

Vacuum pump oil mist separators use multiple materials, primarily glass fiber filter paper and oil-absorbing non-woven fabric.

When oil mist particles enter the separator with gas flow, they're first captured by high-precision glass fiber filter material; then, under continuous exhaust pressure, these small particles coalesce into larger oil droplets that pass through the filter paper; these droplets then encounter specially designed oil-absorbing non-woven fabric where they grow into even larger droplets that finally drain into the oil collection tank by gravity, achieving oil recovery.

Choosing the Right Filter Matters

Selecting the appropriate vacuum pump filter requires considering several factors:

• Choose based on filtration precision (micron rating)

• Consider the operating environment, including temperature, humidity, and presence of corrosive gases

• Verify connection size and installation method compatibility with existing systems

High-quality exhaust filters not only save costs but directly improve vacuum pump performance and extend equipment lifespan.

Filter Replacement & Maintenance

Replacement frequency for vacuum pump filters depends on filter type, operating environment, and specific applications.

Generally, filters should be regularly inspected and replaced when showing signs of clogging or performance degradation. For optimal performance, recommend checking and replacing filters every 6-12 months or according to manufacturer guidelines.

Today, self-cleaning vacuum pump filters are available, using reverse pulse technology that generates powerful shockwaves through brief pressurized air bursts to clean filter elements, significantly extending filter service life.

Small Filter, Big Impact

Proper selection and maintenance of vacuum pump filters not only protect your equipment but reduce environmental pollution and lower operating costs. Whether used in packaging, chemical processes, pharmaceuticals, food processing, or distillation applications, a quality filter ensures efficient and stable vacuum pump operation.

Next time you see a vacuum pump, remember the silent guardian working inside - small but absolutely essential!
