Hydraulic Filter Element

  • High-pressure lubricating filter element   ZNGL02010401
  • High-pressure lubricating filter element   ZNGL02010401
High-pressure lubricating filter element   ZNGL02010401High-pressure lubricating filter element   ZNGL02010401

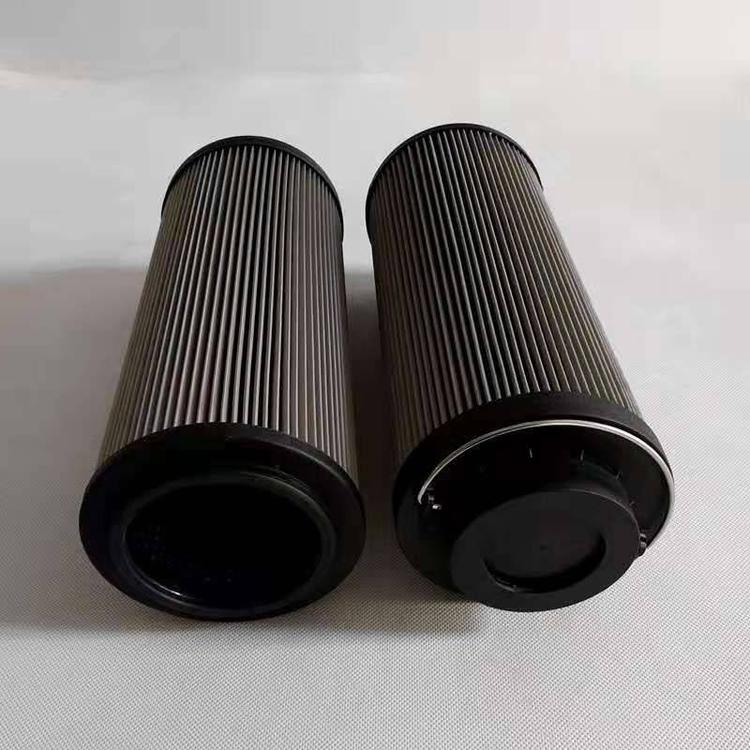

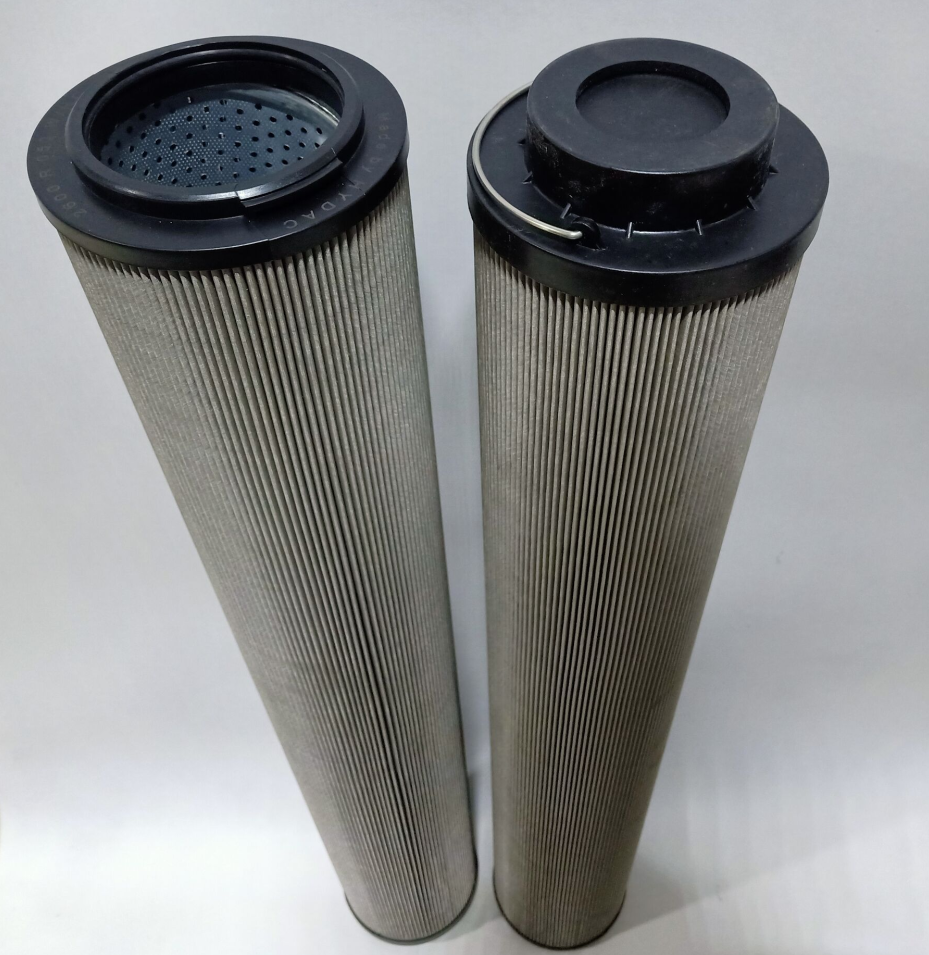

High-pressure lubricating filter element ZNGL02010401

  • Product description: High-pressure lubricating filter element is used for double-cylinder filter of thin oil station in power plant. When the double-cylinder filter is working, when one filter element is blocked and needs
  • INQUIRY   EMAIL

High-pressure lubricating filter element is used for double-cylinder filter of thin oil station in power plant. When the double-cylinder filter is working, when one filter element is blocked and needs to be replaced, it is not necessary to stop the main engine. Just open the pressure balance valve and turn the reversing valve, The other filter is ready to work, then replace the clogged filter element. This thin oil station double-barrel filter has a small switching torque and no interruption of flow, and there is no false alarm caused by switching interruption of ordinary filters. This thin oil station double-cylinder filter is used in heavy machinery, mining machinery, metallurgical machinery  etc.

Filter element

Working pressure (Mpa)

Filter precision

(μm)

Filter housing

ZNGL02010101

1.0

100

ZNGL01010101

ZNGL02011001

1.0

40

ZNGL01010101

ZNGL02010601

1.0

10

ZNGL01010101

ZNGL02010201

1.0

100

ZNGL01010201

ZNGL02010901

1.0

40

ZNGL01010201

ZNGL02010301

1.0

25

ZNGL01010201

ZNGL02011301

1.0

10

ZNGL01010201

ZNGL02010401

1.0

100

ZNGL01010301

ZNGL02011101

1.0

40

ZNGL01010301

ZNGL02010501

1.0

100

ZNGL01010401

ZNGL02011201

1.0

20

ZNGL010104
