Air Compressor Filter

Compressed air dry filter element replacement Orion EDS2000 ELS2000 EKS2000 EMS2000

Product description: Replacement Cartridge Element for Orion use in air compressor system
INQUIRY EMAIL

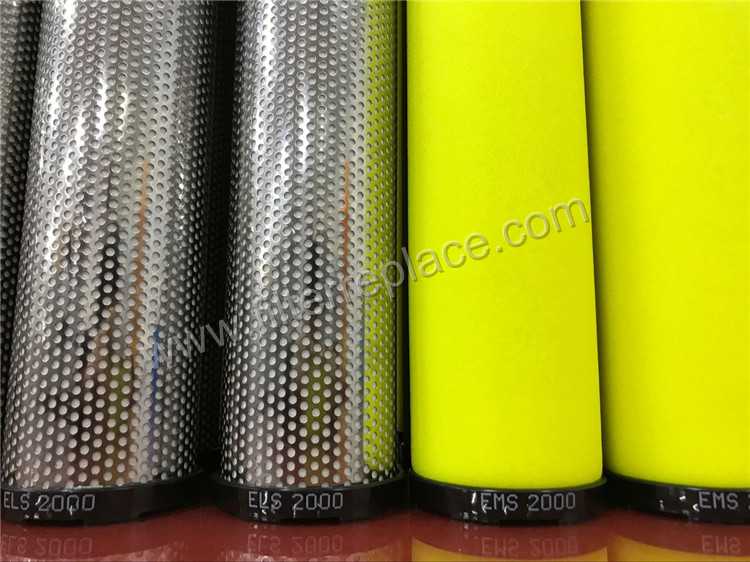

Replacement Orion air dryer main pipe line filters EMS2000 structure:
1.Superior filtration material imported Europe,American,Japan & domestic material.
2.Stainless steel inner frame
3.hydrophobic foam sleeve outside
4.High copy appearance same with original filter & element
5.Same dimension with original filter element.it can be installed on the filter directly.

Function:
1.Removing oil and water from the compressed air
2.Filter material have features like high filtration efficiency,corrosion-resistant,high strength,low air flow resistance,long
service life
3.Oil resistance,chemical corrosion resistance,avoid coalescence liquid into air again.

Application:
Air Compressor, Metallurgy,petrifaction,spinning,electron & pharmacy,power plant,food,hospital etc.

Filtration Grade	Filtration Rate	Residual Oil component
EDS	3µm	5ppm
ELS	1µm	1ppm
EMS	0.01µm	0.01ppm
EKS(Activate carbon)	0.01µm	0.003ppm

Filtration Grade	Filtration Rate	Residual Oil component
EDS	3µm	5ppm
ELS	1µm	1ppm
EMS	0.01µm	0.01ppm
EKS(Activate carbon)	0.01µm	0.003ppm
E1-28	E3-28	E5-28
E1-32	E3-32	E5-32
E1-36	E3-36	E5-36
E1-40	E3-40	E5-40
E1-44	E3-44	E5-44
E1-48	E3-48	E5-48
