Air Filter

  • Industrial Cement Silo WAM Three Lugs 3 Ears Pleated Filter Cartridge

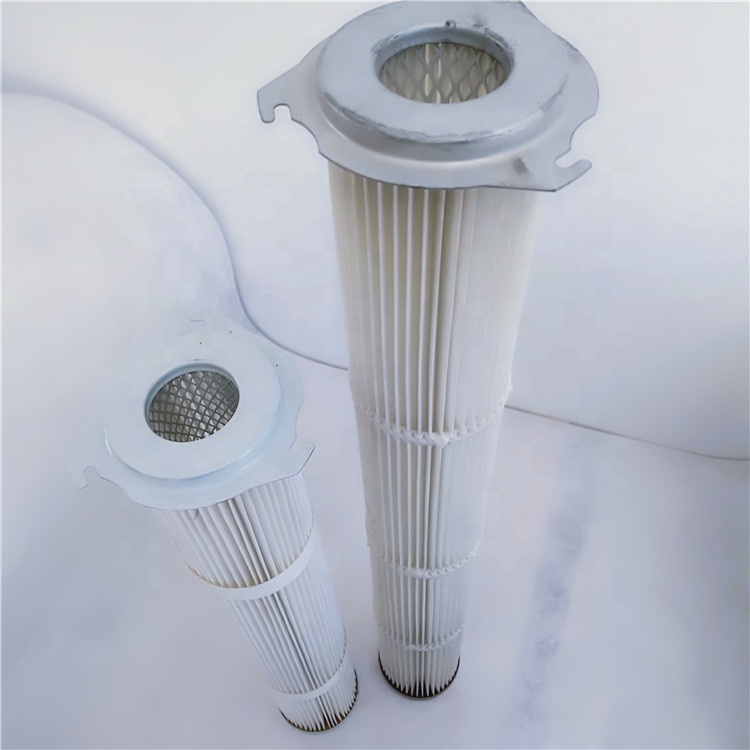

Industrial Cement Silo WAM Three Lugs 3 Ears Pleated Filter Cartridge

Industrial Cement Silo WAM Three Lugs 3 Ears Pleated Filter Cartridge

Three Lugs 3 Ears Pleated Filter Cartridge

I. Polyester fiber air filter cartridge
It is made of imported polyester fiber filter material and used in the fields such as powder spraying, sandblasting, paint, wood, and cement.

II. Coated polyester air filter cartridge
It is made of imported PTFE coated polyester filter material and it has a long service life, which can up to 2 to 3 years in common operating conditions. It is applied in the filtration in such areas like the weld dust, shot peening casting, pharmacy, cement, tobacco, textile (e.g. yarn for prevention of coal ash) industries.

III. Antistatic filter cartridge
The filter cartridge is treated with anti-static aluminum coating, which is covering the surface of the filter material with a very thin conductive aluminum coating with air permeable, to avoid electrostatic fire. It is used for dust removal in the explosion-proof working conditions.

The filter cartridge dimension
Type   OD(mm) ID(mm) Height(mm) Cap configuaration
200series 200 91 150~2000 OO/OC/OCB
324 series 324 213 150~2000 OO/OC/OCB/3lugs/twist lock
352 series 352 241 150~2000 OO/OC/OCB
406 series 406 292 150~2000 OO/ OCB
445 series 445/324 330/213 660 OO cone
324 series 324 213 500~1400 OC 406*363Flange
446 series 476/446 356 660 OC
