Air Filter

  • Dust Collector Industrial Polyester Filter Cartridge 350*900
Dust Collector Industrial Polyester Filter Cartridge 350*900

Dust Collector Industrial Polyester Filter Cartridge 350*900

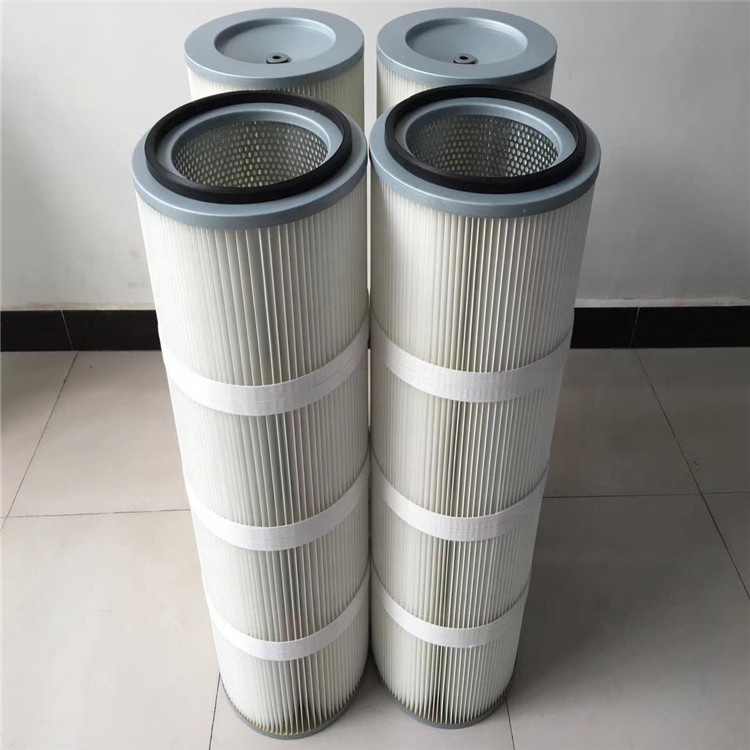

Industrial washable Round Dust Filter Cartridge 350*900

I. Polyester fiber air filter cartridge
It is made of imported polyester fiber filter material and used in the fields such as powder spraying, sandblasting, paint, wood, and cement.

II. Coated polyester air filter cartridge
It is made of imported PTFE coated polyester filter material and it has a long service life, which can up to 2 to 3 years in common operating conditions. It is applied in the filtration in such areas like the weld dust, shot peening casting, pharmacy, cement, tobacco, textile (e.g. yarn for prevention of coal ash) industries.

III. Antistatic filter cartridge
The filter cartridge is treated with anti-static aluminum coating, which is covering the surface of the filter material with a very thin conductive aluminum coating with air permeable, to avoid electrostatic fire. It is used for dust removal in the explosion-proof working conditions.

The filter cartridge dimension
Type   OD(mm) ID(mm) Height(mm) Cap configuaration
200series 200 91 150~2000 OO/OC/OCB
324 series 324 213 150~2000 OO/OC/OCB/3lugs/twist lock
352 series 352 241 150~2000 OO/OC/OCB
406 series 406 292 150~2000 OO/ OCB
445 series 445/324 330/213 660 OO cone
324 series 324 213 500~1400 OC 406*363Flange
446 series 476/446 356 660 OC
NOTE:
OCB have OCB0.375" OCB0.540" OCB0.563" OCB1.187"
Please contact us for more size ,

More filter material you can choose
1.100% cellulose (H&V material)
2.80% cellulose+20%polyester (H&V material)
3.80% cellulose+20%polyester Flame retardant (H&V material)
4.Nano-web
5. Nano-web Flame retardant
6.Polyester(white,black for choose)
7.Polyester+Flame retardant
8.Polyester+oil,water resistant
9.Polyester+Antistatic
10.Polyester+PTFE membrane+Antistatic

11.Polyester+PTFE membrane

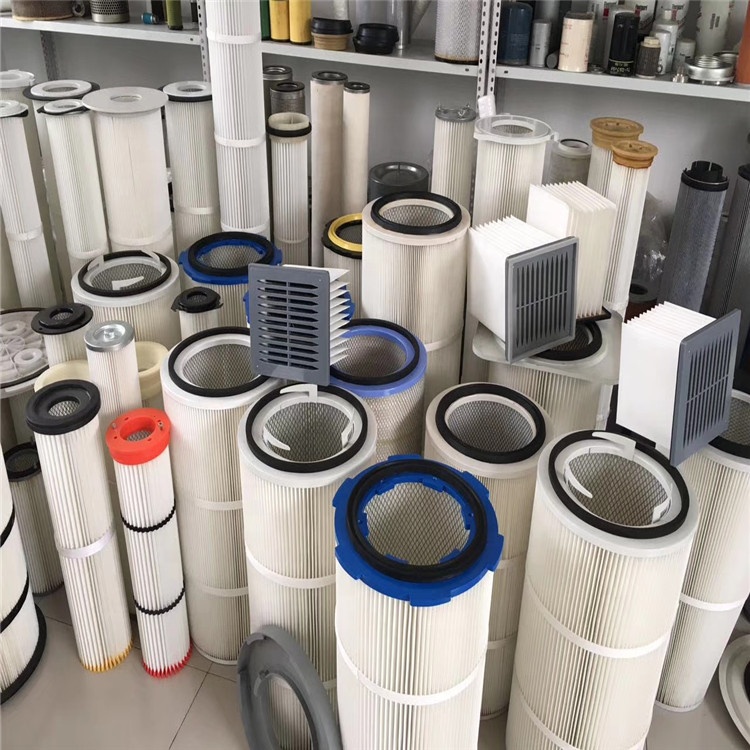

We manufacture a complete line of Cellulose, Polyester, Synthetic, Coated and Non-Woven Cartridges to fit most cartridge collectors in the marketplace today. Each type of cartridge is designed with a specific application in mind.
