Air Filter

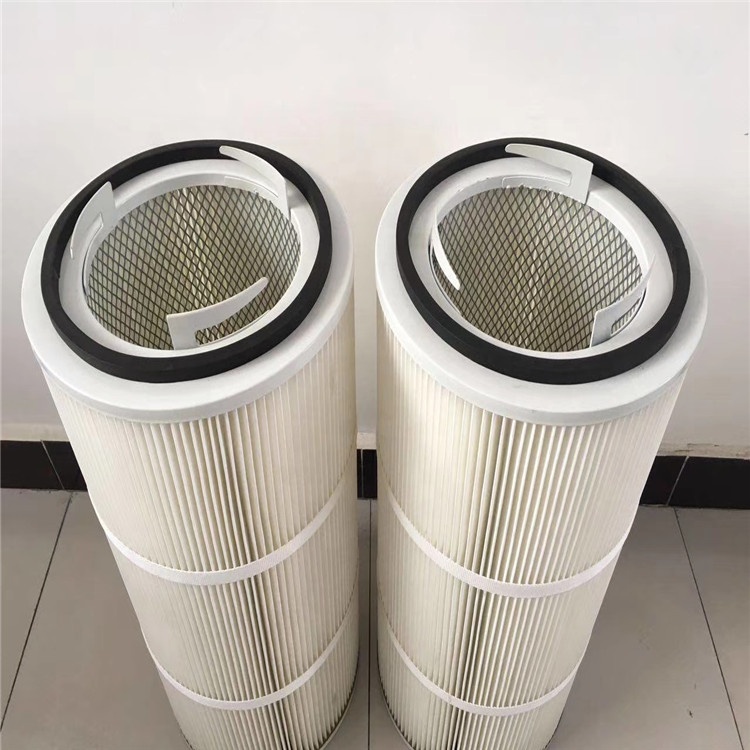

  • Cellulose Twist Lock Filter Cartridge for gas turbine air intake system
Cellulose Twist Lock Filter Cartridge for gas turbine air intake system

Cellulose Twist Lock Filter Cartridge for gas turbine air intake system

  • Product description: Suitable for Gas Turbine air inlet housing in all kinds of operating environments
  • INQUIRY   EMAIL
Structure of Twist Lock Filter Cartridge:
Item Material(Standard) Material(Alternative)
Filter Media Cellulose/Synthetic fiber/ All kinds of H&V air filtration`s filter
Nanofiber/Polyester fiber media selection
Top cap/ Galvanized steel Stainless steel
Bottom cap
(Open/Closed)
Gasket EPDM Silicone
Inner Mesh Galvanized steel Stainless Steel
Outer Mesh Galvanized steel Glued or ultrasonic welded straps
Finishing Treatment Teflon-coating,waterproofing,oilproofing,flame-retarding
treatment, antistatic coating,etc

1. Suitable for Gas Turbine air inlet housing in all kinds of operating environments: We will equip the most suitable filter media from various selection of high quality to clean your air perfectly;
2. Prime Technique: Careful construction, low pressure drop and competitive price.
3. Installation: The Twist Lock filter cartridge is Installed horizontally.

For the above product, following is its specifications:
Item Dimensions(OD*ID*L)mm Specification
Twist lock air filter cartridge 324*213*864 1.Filter Media:HV6279(cellulose/polyester)
2.Filter Area:27m^2
3.Gasket OD:12.38inch
4.End caps and mesh: Galvanised steel

Application:

Thenow cylindrical filter cartridge is suitable for gas turbine air intake system in all kinds of operating environments.
