Hydraulic Filter Element

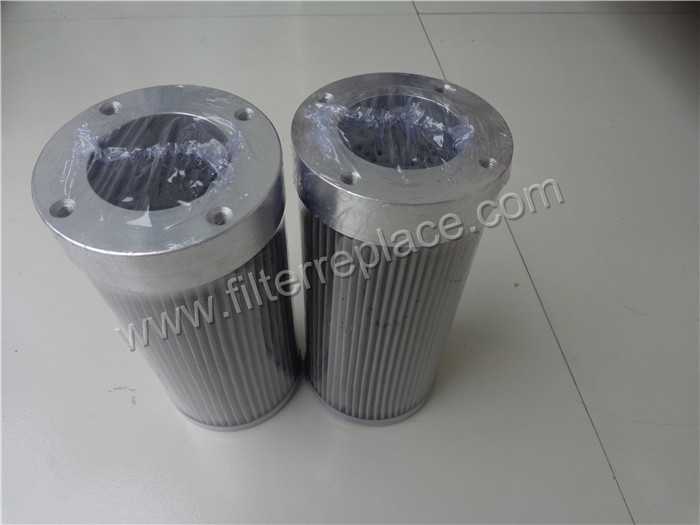

WU series wire mesh suction filter element WU-250*80F-J

Product description: This kind of filter is rough filter and can be installed at the inlet of the pump and can protect the pump not to in breathe the bigger impurity.The filter is simple designed. It is easy to let oil go
INQUIRY EMAIL

WU Wire Mesh and XU Notched Wire

Model	Dia (mm)	Flow Rate (L/min)	InitialΔp(Mpa)	Filtr (μm)	By-pass valve setting (Mpa)	Connection
WU-16×*-J	12	16	≤0.01	80 100 180 (Only WU)	0.02	Thread
WU-25×*-J	15	25
WU-40×*-J	20	40
WU-63×*-J	25	63
WU-100×*-J	32	100
WU-160×*-J	40	160
WU-250×*F-J	50	250				Flange
WU-400×*F-J	65	400
WU-630×*F-J	80	630
XU-16×*-J	12	16				Thread
XU-25×*-J	15	25
XU-40×*-J	20	40
XU-63×*-J	25	63
XU-100×*-J	32	100
XU-160×*-J	40	160
XU-250×*F-J	50	250				Flange
XU-400×*F-J	65	400
XU-630×*F-J	80	630
Note: * is filtration. If the fluid is water-glycol, and the filter equipped with by-pass valve, the model of this filter is WUI·BH-100x-J, XUI·BH-100x-J
